HDMI Splitter 2/4/8
Introduction:

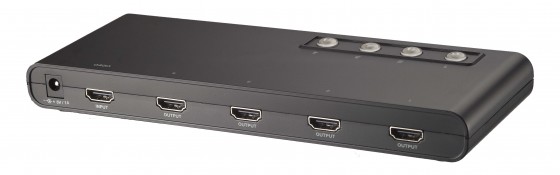

The 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Feature:
One HDMI input signal split to four HDMI devices
‧EP9144 chip set
‧Supports 4Kx2K resolutions
‧2D and 3D and HDMI 1.4 compliant
‧Supports deep color 30/36bit.
‧Supports up to 1080p/60HZ
‧It supports 4K by 2K resolutions for Post Productions, Digital Movie Theaters, CAD/CAM and Video Graphics applications.
‧Supports xv-YCC.
‧HDMI 1.4 support and 4000x2000.
‧Digital audio formats: DTS-HD, Dolby-True-HD. LPCM7.1, AC3, DTS and DSD.
‧Supports HDMI signal retiming with cascading above 3 layers in full-HD 1080p format and 2D and 3D
‧Supports an input HDMI cable up to 15 metres @ AWG24 HDMI standard cable length and an output up to 25 metres.
‧No video or audio loss of quality.
‧Installs in minutes.
‧Includes power supply
