USB 3.0 Docking
Introduction:

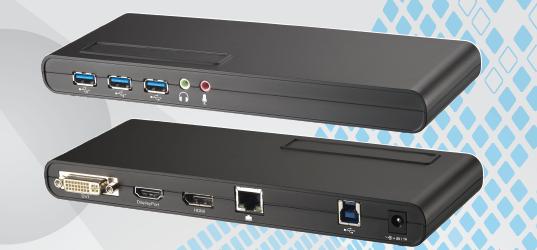

The USB 3.0 Dock provides a quick and easy connection to all the workspace peripherals you use every day. Simply plug in a single USB 3.0 cable into your Lenovo PC for instant access to up to two external monitors, Gigabit Ethernet, headphones/speakers, USB printers and scanners, keyboard, mouse, and up to 5 Gbit/s access to external storage (over 10 times faster than USB 2.0).
Feature:
‧Supports and compliant HDMI1.3 and DVI 1.0 specification.
‧Supports DVI –I (DVI to VGA adapter included) resolution Up to 1080p(HDTV) or 1920x1200@60Hz(PC).
‧Supports HDMI resolution Up to 1080p(HDTV) or 1920x1200@60Hz(PC).
‧Supports LAN 10/100MB,Gigabit LAN
‧Supports Audio sample rate up to 48KHz.
‧Supports USB3.0 Hub Function (3Port Device).
‧DC 5V input x1.
‧USB 3.0 input x1.
‧DVI-I output x1.
‧HDMI output x1 or DisplayPort output x1.
‧LAN RJ-45 output x1.
‧Microphone input x1.
‧3.5mm Audio output x1.
System Requirements:
This device only works with computers running the following operating systems.
‧Windows 8 (32-bit or 64-bit)
‧Windows 7 (32-bit or 64-bit)
‧Windows XP Home or Professional (including Tablet edition) with Service Pack 2 or 3 (no 64-bit support)
Hardware Requirements:
Dual Core Intel CPU 2GHz or better. Windows GPU should be Intel, nVidia, or ATI
